| ZCYJIKK Camera TFT LCD Car Rear View Monitor Kit |

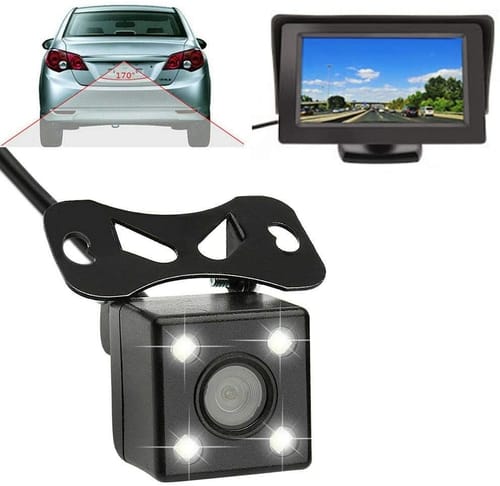

ZCYJIKK 4.3 inch TFT LCD Car Reversing Monitor Kit + Waterproof 4 LED 170 Degree Camera Reversing Camera, Suitable for Vehicle / Vehicle
how to use:
1. Install the camera on the license plate.
2. Turn on the camera: Connect the red wire to the power cord of the camera to reflect the light (+), and connect the black wire to the ground screw or metal reflector (-).
3. Connect the red wire of the video cable to the same power source as in step 2 (reversing lights +).
4. Connect the video cable to the camera and bring it directly to the front of the car. Then insert it into the dashboard.
5. Cut off the original mirror screen, connect the video cable to the white AV2 video port (mirroring priority is supported), and plug in the power cord.
6. Get the power the monitor needs: Connect the power cord from the red monitor to the red wire on the video cable, then connect the black wire from the monitor to the ground.
7. Test the system.
- Components for Rear View Camera and Car Monitor, 4 LED Waterproof Night Vision Cameras + 4.3 Inch TFT LCD Screen and Rear View Monitor (12V only).
- Adopting 4.3 inch 800 × 480 TFT LCD screen, PAL and NTSC standard. This screen is designed to avoid glare from sunlight and city lights.
- With LED lighting for night vision. The car rear camera with auto LED light makes the night driving safer.
- Parking Aid: Use the reverse gear, the screen automatically shows what is behind you. It also displays a default streak that you can use to estimate the distance between your bumper and another point.
- No delay, no interference. 170 degree wide viewing angle. IP68 waterproof function, can be used outdoors.
