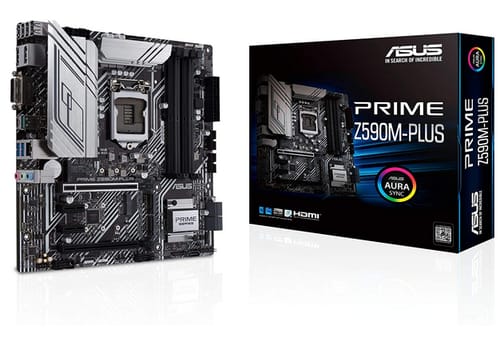

ASUS Prime Z590M-PLUS microATX Motherboard
ASUS Prime Z590M-PLUS microATX Motherboard

ASUS Prime Z590M-PLUS LGA 1200 microATX (11th / 10th Gen) motherboard (PCIe 4.0, 10 power-phase, 3X M.2 slot, Thunderbolt 4 connector, 1GB LAN, SPI-TPM header, M.2 wireless switch) , Aura Sync RGB)

ASUS Prime Z590M-PLUS is carefully designed to take advantage of the 11th generation Intel® Core ™ processors. ASUS Prime Z590M-PLUS offers an array of performance-enhancing options for casual users and PC manufacturers through intuitive firmware features with robust power design, comprehensive cooling solutions and smart options settings.

 Prime Z590M-PLUS

Intel Z590 (LGA 1200) Mini-ATX motherboard with PCIe 4.0, 9 DrMOS performance levels, DisplayPort, HDMI, DVI, SATA 6 Gbit / s, Intel 1 Gbit Ethernet, USB 3.2 Gen 2x2 Type C, Thunderbolt 4 support, Aura Sync RGB lighting.

Coolant and VRM sealing

Two large radiators and heat pads improve the heat transfer between the MOSFET and the throttle unit, thus improving the cooling performance.

Cooler by version

Prime Z590 series includes full-fledged cooling controls that can be configured with Fan Xpert 4 software or the UEFI BIOS.

ProCool Connection

The special connector has an 8-pin connector for connecting the motherboard to the power supply, and the connector can send 12 volt power directly to the processor. The 8-pin connector has a jumbo screw that can withstand higher currents than the hollow conductor.

8 + 1 DrMOS power amplifier

A DrMOS 8 + 1 phase regulator module can provide the performance and efficiency required by the latest Intel processors.


Reviewing the latest Intel processor motherboard tracking path provides unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal paths onto different layers of circuit boards to reduce openings and increase the protection area, which can significantly reduce noise.

Three M.2 slots (up to 64Gbps)

Prime Z590M-PLUS offers a total of three M.2 slots, one of which supports up to 64Gbps data throughput via PCI Express 4.0, so applications can be launched and loaded more quickly via the operating system or application drivers.

PCIe 4.0 slot

The ASUS Z590 motherboard is designed for the 11th generation of Intel Core processors and offers PCIe 4.0 connectivity for the latest GPU. With large bandwidth and blazing fast transfer speed, you can create feature-rich designs that can easily handle heavy loads.

Generation USB 3.2 Type 2x2C.

Multiple USB ports support high-end peripherals and chargers, including one USB Type-C port at the back, with USB 3.2 Gen 2x2 speeds and transfer speeds of up to 20Gbps.

Thunderbolt 4 header support

Prime Z590M-PLUS supports Thunderbolt 4 via the built-in port. Using the latest Intel-certified ASUS TunderboltEX 4 expansion card, bi-directional speeds of up to 40Gbps can be achieved over a single cable. Additionally, this card has a daisy chain linking function for connecting to multiple screens and supports screen resolutions of up to 8Kbps. It can also provide up to 100W of power to quickly charge the device.

ASUS Prime Z590M-PLUS microATX Motherboard
ASUS Prime Z590M-PLUS microATX Motherboard

  •  Intel LGA 1200 Socket: Designed to deliver the highest performance 11th Generation Intel Core processors
  • Enhanced power solution: DrMOS 10-phase power supply, ProCool connectors, and durable alloy coils and capacitors for stable power supply in the toughest situations
  • Complete heat dissipation: VRM heat sink, PCH heat sink, hybrid fan header and Xpert 4 fan
  • Improved memory performance: The cable layout in ASUS OptiMem II allows the memory stack to run at a higher frequency without much effort to maximize system performance.
  • Ultra-fast connectivity: 3M.2, 1 Gb Ethernet, M.2 (E-Key) used only for wireless networks, supports USB 3.2 Gen 2 Type C and Thunderbolt 4
