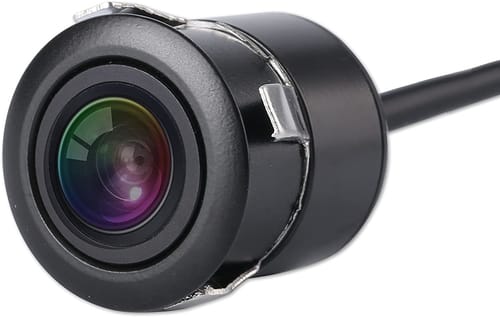

Chuanganzhuo Car Parking Vehicle Backup Camera
Chuanganzhuo Car Parking Vehicle Backup Camera

Chuanganzhuo Android Parking Rearview Camera, CMOS HD waterproof universal mirror line range finder

Reversing camera, universal rear camera with video cable and power cord

Overview:
Our camera is suitable for all kinds of vehicles and should be installed in the correct position of the vehicle and used with display / GPS / parking sensor etc.
When used in the rear view when reversing and with the reverse fear switch turned on, the camera works with the monitor function.

custom made:
TV system: NTSC
Effective Pixels: PAL: 648 * 488 pixels
Horizontal Resolution: 420 TV lines
Minimum Illumination: 1.5Lux / F1.2
- Video Output: Cinch Connect, 1.0V P-P, 75 Ohm
Power supply: DC12V
Water resistant class IP67

Installation steps:
1- Install the camera at the back of the car (on the back of the license plate or any other convenient location) using a drill.
2- Connect the camera power supply to the reverse light - the red cable is connected to the positive pole and the black cable is connected to the negative pole
3. Connect the camera video cable to the extension cable
4 Connect the extension cable to the car's monitor
5- When your car is reversing, you will see the picture

  • Reversing camera, universal rear camera with video cable and power cord
  • High image quality and wide viewing angle, made of premium quality materials, durable and waterproof, its stylish and modern design makes it extremely popular
  • Video Output: 1.1 V - S.750hm; Electronic Shutter: 1/60 to 1/15000 s; Resolution: 420 TV lines
  • Current consumption: 80mA Max; Power supply: DC 12V. Operating temperature: -10-46 ° C (95% maximum relative humidity); Storage temperature: -30-60 ° C (95% maximum relative humidity); Water resistance: IP67
  • The small joint allows hidden mounting and has no effect on the appearance of the vehicle. Strong weather resistance, suitable for all types of vehicles
