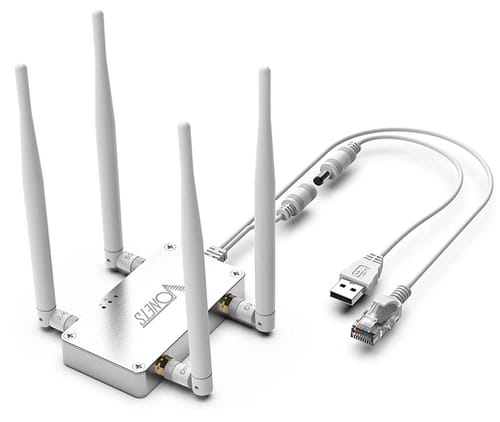

Vonets VBG1200 Mini WiFi Bridge Ethernet Repeater Router
Vonets VBG1200 Mini WiFi Bridge Ethernet Repeater Router



Vonets VBG1200 2.4GHz / 5GHz Mini Ethernet WiFi Bridge / WiFi Repeater / Router / DC / USB Industrial WiFi Signal Range Extender with 1 RJ45 Connector for DVR IP Camera

VBG1200 is a professional dual band WiFi router and bridge developed by Houtian Network. It can work in the 5G and 2.4G frequency bands simultaneously.It uses automatic frequency control (TAFC) technology to compensate for the temperature and the WiFi signal is stable instead of falling off easily.

Position characteristics:

1. Support router and bridge relay mode.
2. Support WiFi hotspot auto reconnection, two hotspot matching methods: full match authentication method, SSID and password authentication method;
3. WiFi hotspot memory, up to 100 hotspot memories;
4. Support connecting more than 20 WiFi stations at the same time;
5. Support IP layer and MAC layer transparent transmission, two connection modes to meet different bridge applications:

Features:

  • 1. Support DC5-15V wide voltage
  • 2. LED status display:
  • Ethernet port status LED (amber);
  • 2.4G WiFi connection status LED (blue);
  • WiFi 5G connection status indicator (green);
  • 3. Antenna interface
  • 2 external 3dBi 2.4G antennas;
  • 2 x 3dBi 5G external antennas;
  • 4. Reset button (press and hold for 5 seconds, then release, the device will restore to factory settings automatically)
  • The aluminum alloy housing has good heat dissipation performance, which can quickly dissipate the heat generated when the equipment is running.
Vonets VBG1200 Mini WiFi Bridge Ethernet Repeater Router
Vonets VBG1200 Mini WiFi Bridge Ethernet Repeater Router

  •  ✅ 【Function】: 2.4GHz and 5GHz Industrial Dual Band Bridge/Repeater/Router/WiFi to RJ45 Ethernet Port for WiFi to wired or wired to WiFi function.
  • ✅ 【Parameters】 WiFi Speed: 300Mbps (2.4GHz) & 900Mbps (5GHz), WiFi 802.11ac/a/b/g/n protocol supports point-to-point transmission (via 802.11A protocol) distance : Up to 150-Nr obstacles and 200m for small data (5G), 100-150m for video transmission (5G)
  • ✅ 【Power Supply】 Powered by DC5V-15V wide voltage (typical 5V/2A, ripple under 100mV) optional USB or DC socket, 30cm power cord with DC male connector and USB male connector
  • ✅ 【Scope of Application】 A good partner for network applications such as security systems, electronic scales, digital video recorders, IP cameras, medical devices, IoT devices, video transmission, industrial PLCs, AGVs, PS3s, network printers, robots, dummies, Wireless etc
  • ✅【Fever Problem】The aluminum alloy casing has good heat dissipation performance, which can quickly dissipate the heat generated during the operation of the machine. The heat from the wafer dissipates in the metal casing - you don't have to worry too much about the temperature of the chassis, after extensive testing the device works
